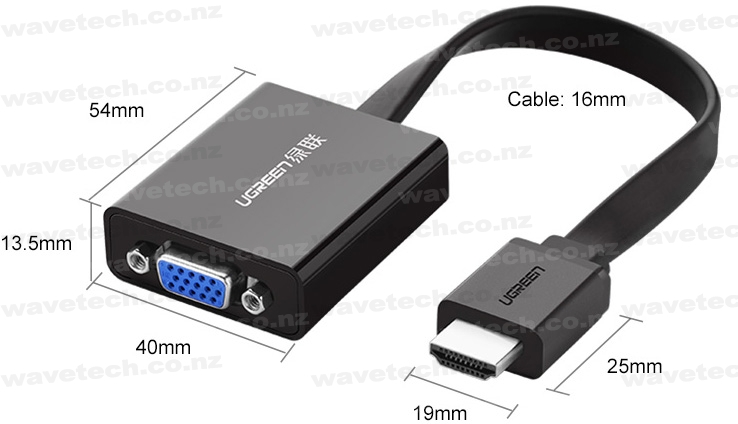

RPI-VGA-1 | HDMI to VGA Adapter with Audio

RPI-VGA-1 is a high quality, high performance, convenient and compact electronic device which converts the digital HDMI video signals which are outputted from your device into an analogue signal required by the widely used VGA based computer displays still widely used around the world.

This adapter even converts and outputs the HDMI audio via a handy standard 3.5mm AUX analogue audio connector.

Features
• Male HDMI -> Female VGA Adapter
• Female HDMI Type-A Input Connector
• Female VGA DE-15 Output Connector
• Female 3.5mm Analogue Audio Output Connector
• Optional Micro USB Power Connector (Not required during our testing)

• The device handles display resolutions of up to 1080p

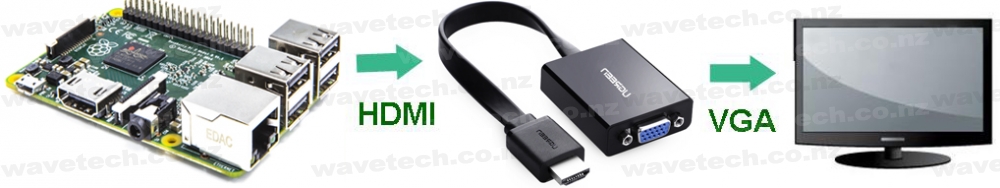

• Tested working with the Raspberry Pi
• Can be used as a simple HDMI to analogue audio converter
• Use our AUX2 to convert the 3.5mm connector into RCA connectors
• Comes with VGA Adapter & USB -> Micro USB Cable

Raspberry Pi Note:
If you fail to get a correct display output, you may need to force the Raspberry Pi's HDMI output.
Add the below lines to the config.txt file (create if not exists) on the root of the SD card.

hdmi_force_hotplug=1
hdmi_drive=2
hdmi_group=1
hdmi_mode=16

This forces the output to HDMI 1080p 60HZ.
If you want a different resolution, change hdmi_mode to the corrosponding mode from HERE.
