RPI-COMP-1 | Composite Video/Audio Cable for Raspberry Pi
No HDMI port? No worries.
Simply use this cable to obtain a composite video and audio output out of your Pi.
Features
• 3.5mm 4-pole Composite Video/Audio Cable
• Cable Length: 60cm's
• Comes with adapter (required for Raspberry Pi)

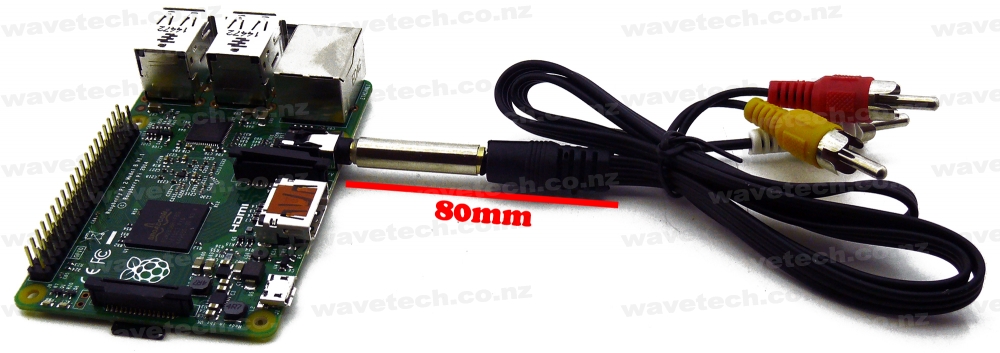

• Note: Adapter & Cable stick out 80mm from Pi (See image #2)
Configuration
• Yellow: Video
• Red: Left Audio
• White: Right Audio
Note: Usual configuration is Red: Right Audo & White: Left Audio.
Therefore, when connecting the cable to a device, you will need to put the red cable into the white connector,
and the white cable into the red connector otherwise your Left & Right channels will be reversed (this won't cause any damage).
How to enable composite
• NOOBS / PINN:
- Press 3 (PAL) or 4 (NTSC) while first booting to enable composite video output
- Make sure you install the OS's while using composite so that they will also use composite.
• OpenELEC / LibreELEC:
- Autodetects composite video on first boot.
- Change audio output to analogue in system/settings/system/audio output/audio output device.
- Deselect enabled in system/settings/system/input devices/peripherals/cec adapter
• Raspbian
- If it asks you do select audio device - choose headphones.
