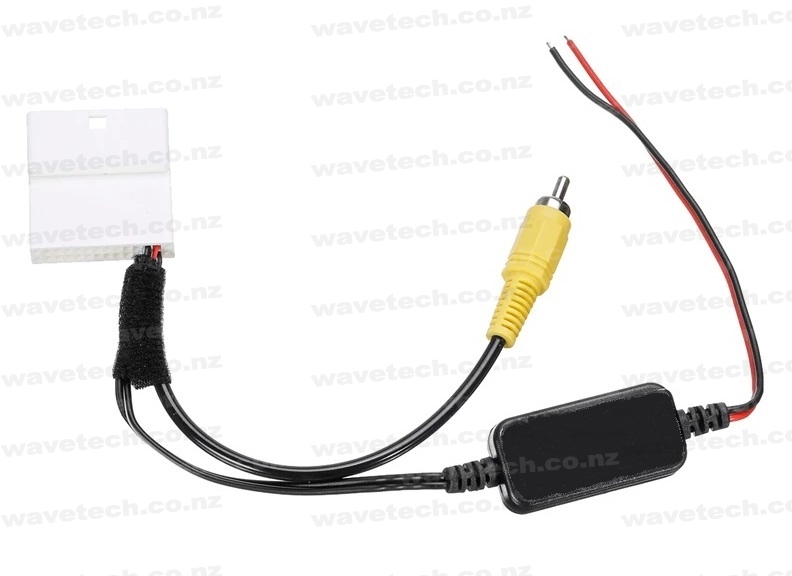

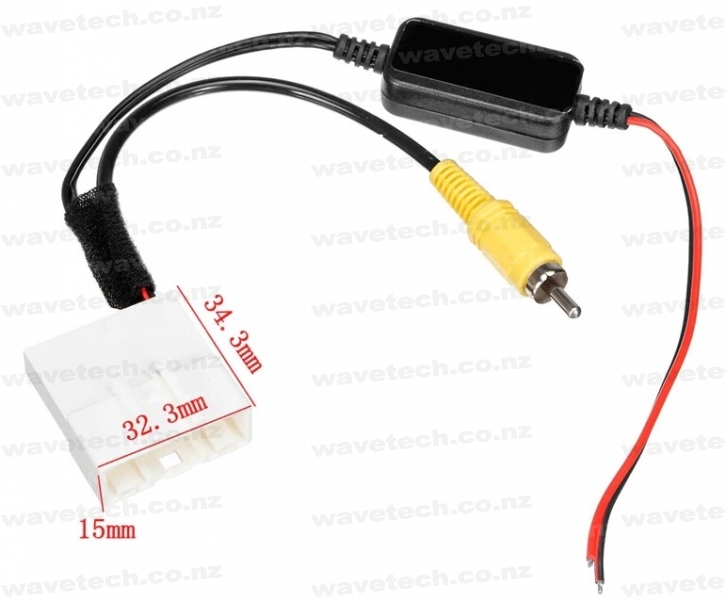

REV-TOY-7 | Toyota 24pin Camera Retention with 12V to 6V Reducer
This adapter helps you to replace your factory radio and retain the factory Toyota reverse camera ( Toyota 6 volt camera system )
Features
• 12V to 6V reducer included to power factory Toyota cameras
• RCA male video plug for OEM Toyota camera signal in to after market Head Unit

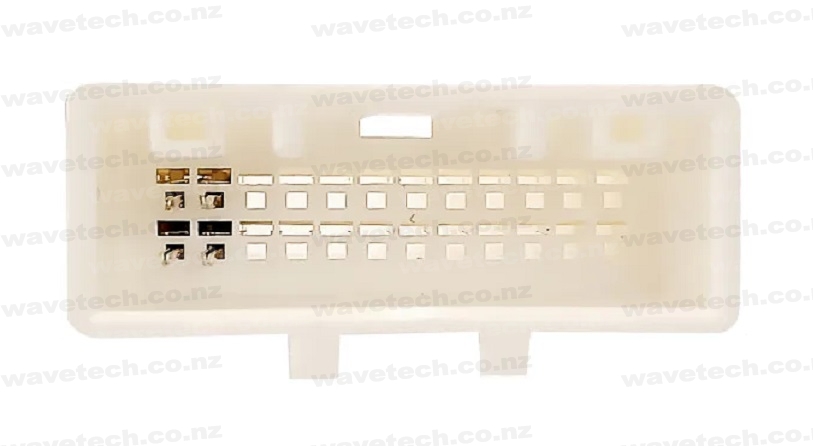

• Connects to OEM Toyota 24 pin camera vehicle loom
Specifications
• Input Voltage: 12V DC
• Output Voltage: 6V
Wiring Instructions
• Red Wire (Input Side) -> +12V Input ( i.e Reverse light positive )
• Black Wire (Input Side) -> Common GND
• Yellow RCA male plug -> Camera input in to replacement head unit
