12V to 6V Reducer for Toyota Camera Retention
$15.00 incl GST
|

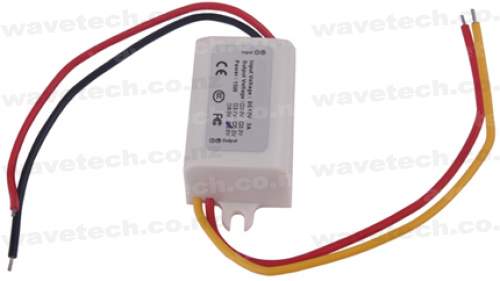

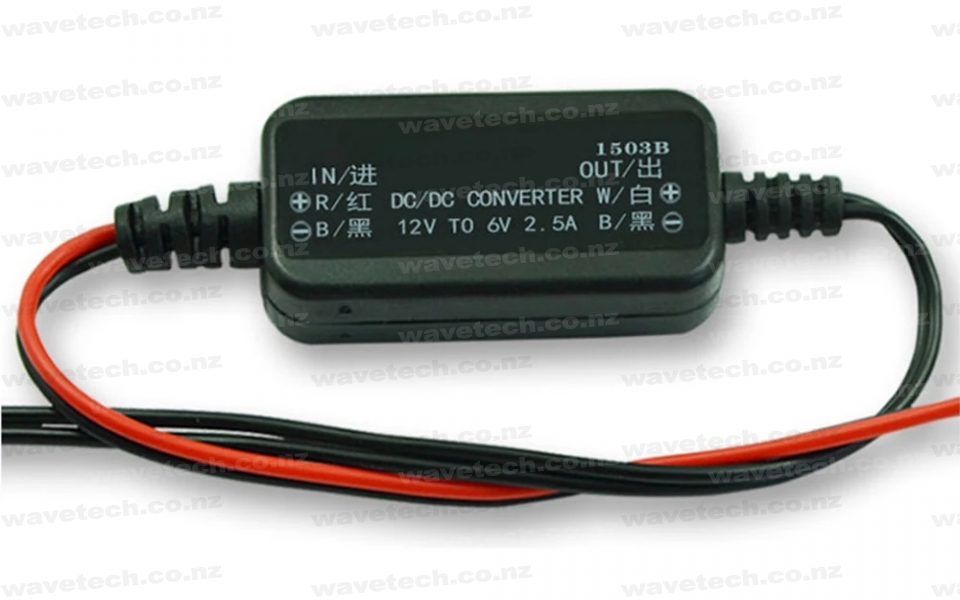

REV-TOY-2 | 12V to 6V Reducer for Toyota Camera Retention
This 12V to 6V reducer module helps you to replace your factory radio and retain the factory Toyota reverse camera.
Features
• 12V to 6V reducer to power factory Toyota cameras
Specifications
• Input Voltage: 12-23V DC
• Output Voltage: 6V
• Max Output Current: 3 Amps
• Size (L x W x H): 37×26×21(mm)
Wiring Instructions
• Red Wire (Input Side) -> +12V Input
• Black & Yellow Wires -> Common GND
• Red Wire (Output Side) -> +6V Output
|
|
|
|
All prices in NZD and include GST
