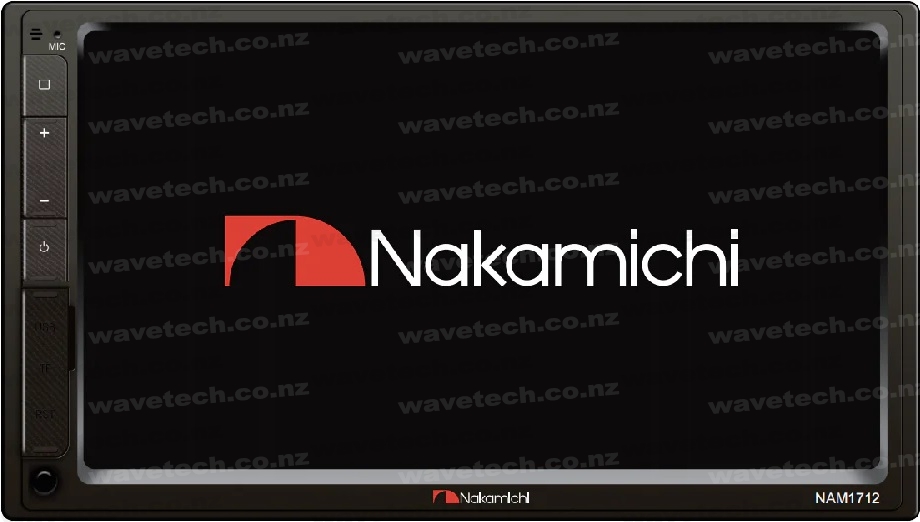

Nakamichi NAM1712 | Mechless Receiver with Bluetooth & USB
Nakamichi NAM1712 Double DIN Mechless Multi-media Receiver.
This unit supports Bluetooth (Hands-Free Calling and Wireless Audio Streaming) and has a Video Playback capable touch screen.
This model is ready to accept a reverse camera.
Features

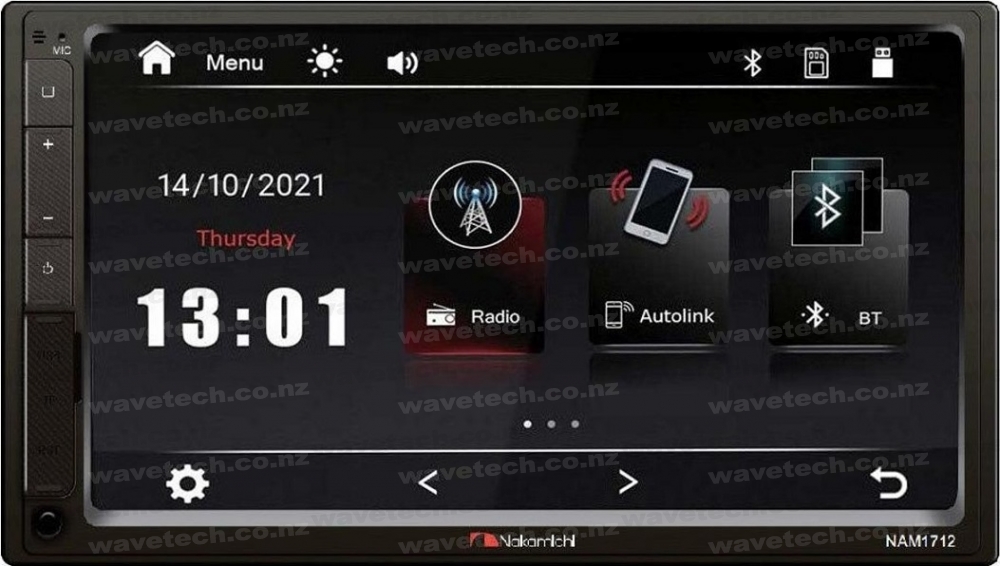

• 7" 800x480 Touch-Screen Display
• Built-in Bluetooth (with Audio Streaming)
• Android Phone Mirror ( Some Android Phones )
• Built-in Microphone (external microphone compatible)
• Front 1A USB Input*
• Rear 1A USB Input*
• Mechless Unit (No CD/DVD Player)
• Front Micro SD Card Input
• ISO Connectors
• MP3/WMA/FLAC/MP4/MKV/FLV/AVI/H264 Playback
• RDS
• Wallpaper Adjustable
• Multi-Colour Key Illumination

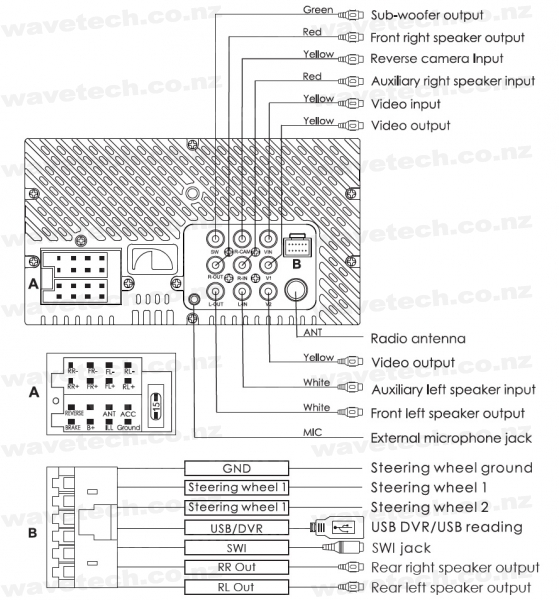

• Rear Audio / Video Input (use AUX2 for 3.5mm input)
• Rear Video Output (x2)
• RCA Audio Output (Front L/R)
• Subwoofer RCA Output
• Reverse Camera Input
• Wired Remote Input
- with Learning Function
- see HERE for some common vehicle SWC positions

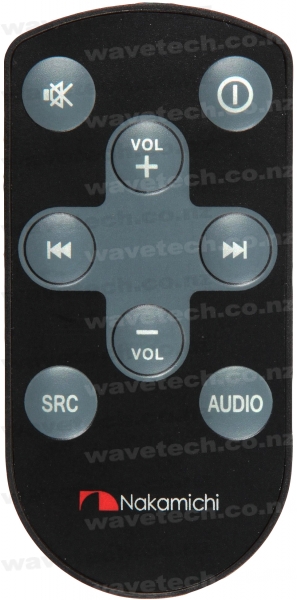

• Remote Control (CR2025 Battery Included)
• Mounting Cage Included
Specifications
• Power Requirement: 12V DC Negative Ground (10.5V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,602 kHz (NZ frequency)
• Speaker Output: 50W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)
Size
• Standard Double Din Size
• Width: 178mm
• Height: 100mm
• Depth: 120mm
* USB port is not compatible with iPod/iPhone/Android devices
However, you may still be able to connect your device via rear A/V in or Bluetooth
Install Notes
• Modification to brackets for install in vehicles may be required
• The radio Auto Antenna wire can also be used as an Amp Turn on wire
• Default Bluetooth device name is NAM1712 and code is 0000
