NVS MS-240BT | Mechless Receiver with USB & Bluetooth

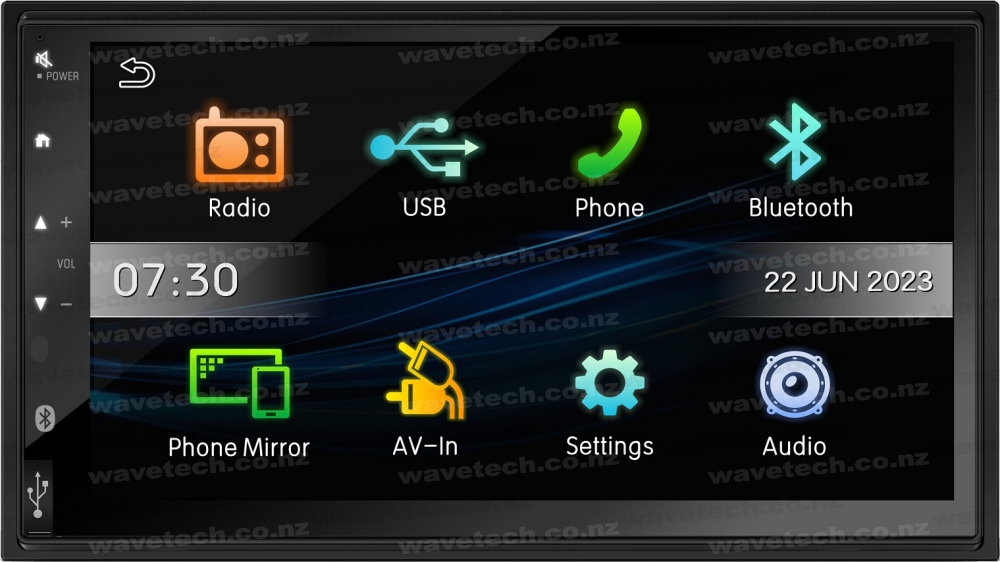

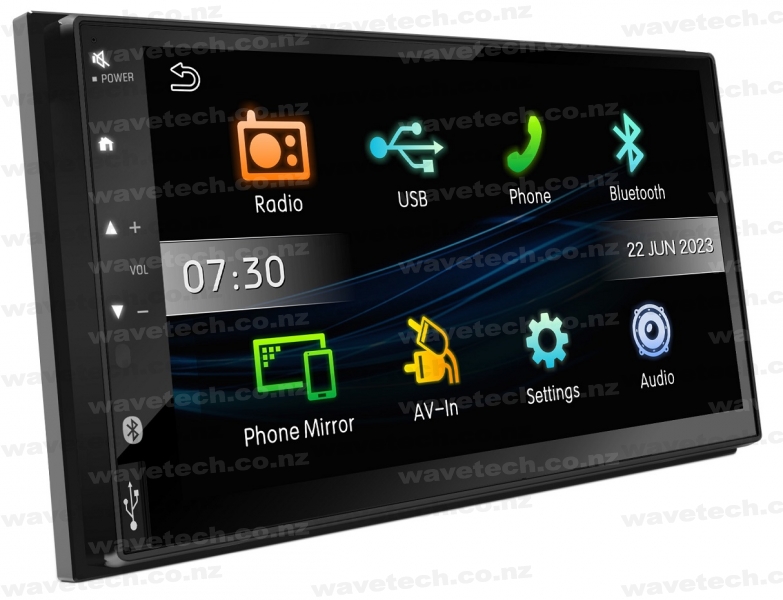

The NVS MS-240BT is a mechless Bluetooth / USB media receiver featuring a 6.8 inch touch screen.
USB mirroring for Android is built into the MS-240BT which allows most commonly used apps to be mirrored from compatible devices onto the screen.
The NVS MS-240BT features an external Mic for improved sound quality when using Bluetooth to call hands-free and can also stream music from your phone via BT. Also many other features such as time alignment and an input for an optional reversing camera to be connected and Steering Wheel Control learning.
Features
• Mechless Unit (No CD/DVD Player)
• 6.8" Wide VGA Touch Screen Display (800x480 resolution)
• USB Mirroring (Android Only)
• Built-in Bluetooth Ver 4.1 (with Audio Streaming)

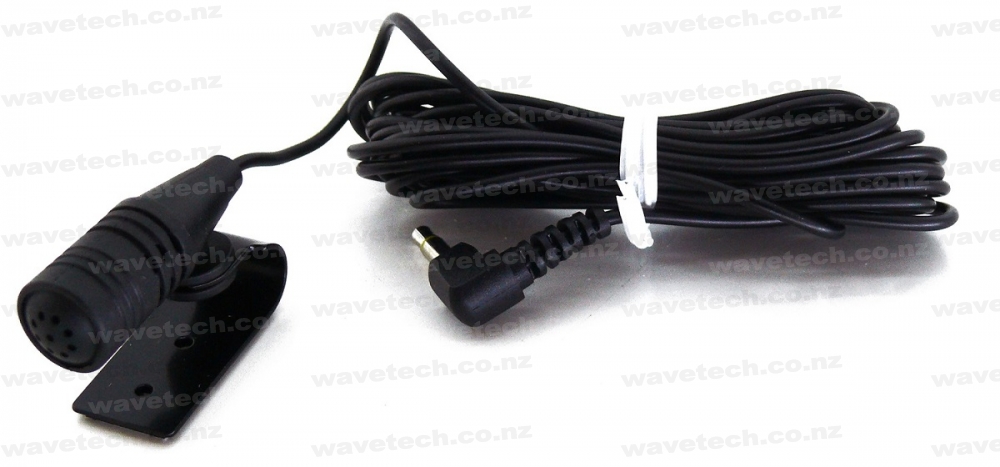

• External Microphone Included (3.5mm) • ISO connector for Power and Speakers • Front 1.5A USB 2.0 Input (iPhone/Android Compatible)
• Rear Audio/Video RCA Input (use AUX2 for 3.5mm audio input)
• Full HD Video Playback
• MP3/WMA/WAV/AAC/FLAC//MPEG 1,2,4/AVI Playback
• AM/FM Radio Tuner
• 13-Band EQ with Bass Boost
• Digital Time Alignment
• Subwoofer Control
• Brightness Control
• RDS (Radio Data Service)

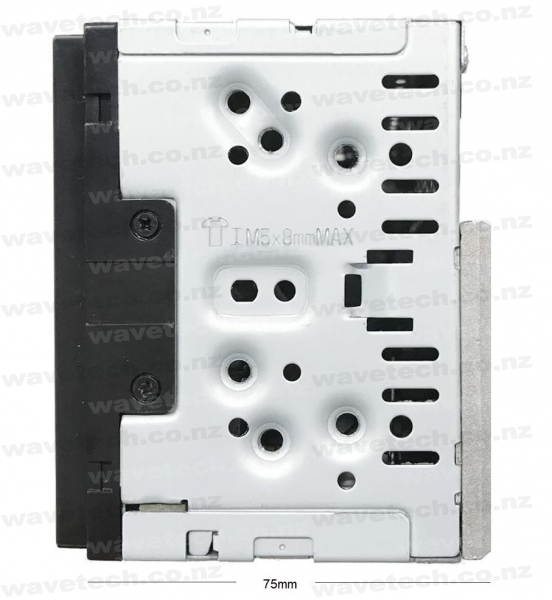

• Shallow Chassis Design (only 75mm deep) with Mounting Cage,Removal Key's and Trim Ring included • Side bracket mounting option featuring M5 machine screw style mounting holes. 6 x M5 screws included • RCA 2V Outputs (Front L/R + Rear L/R + Subwoofer Mono)
• Rear Reverse Camera Input - RCA type (NTSC or PAL camera auto detect)
• Rear Video Output - RCA style
• Rear Wired Remote Input
- with Learning Function
- see HERE for some common vehicle SWC positions
Specifications
• Power Requirement: 12V DC Negative Ground (10.5V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 522 - 1,620 kHz (NZ frequency)
• Speaker Output: 50W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)
Size
• Standard Double Din Size
• Width: 178mm
• Height: 98mm
• Depth: 75mm
