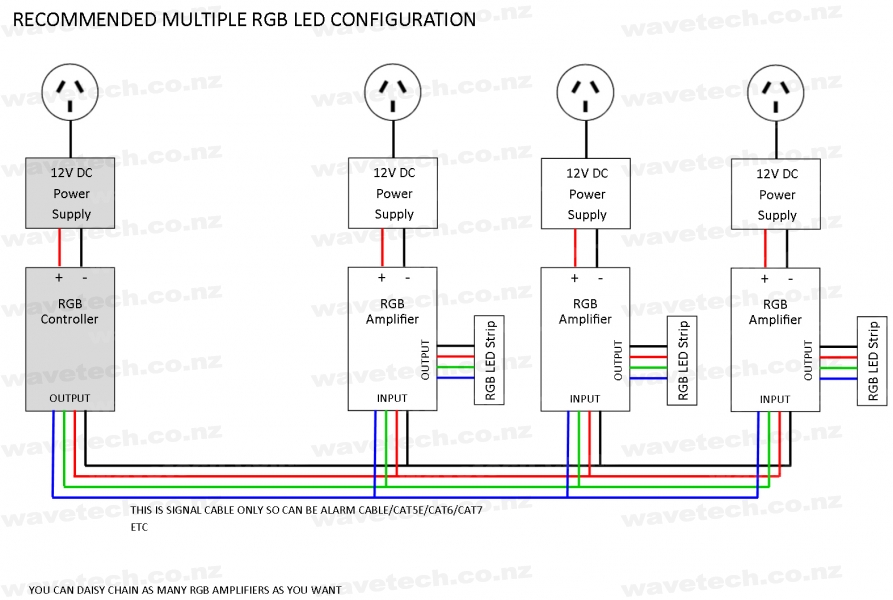

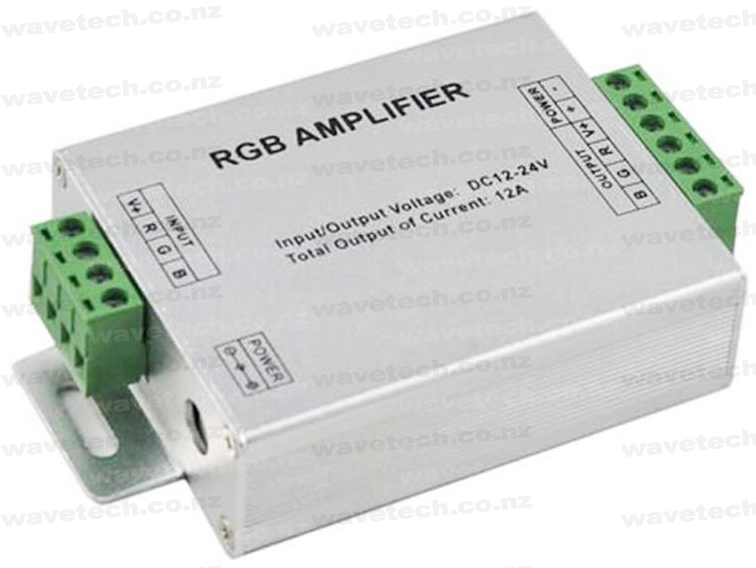

Each RGB LED controller can only control a certain amount of LED strips! When more LED strips are required to be powered from one controller, the RGB LED amplifier is used as a booster to exceed the effective number of LED strips that can be connected to one RGB LED controller.
Features
• Working Temperature: -20 to 60°C
• Input Voltage: 12-24V DC
• Common Anode Connection Type
• Max Total Output: 144W (12A @ 12V)
• Max Per Channel Output: 48W (4A @ 12V)
• Size: L105*W65*H25mm
