JVC KW-M560BT | Mechless Receiver with USB & Bluetooth
The JVC KW-M560BT interfaces your smartphone with your car to enrich your driving experience.
Enjoy your favourite apps and navigate in comfort and safety with the KW-M560BT.

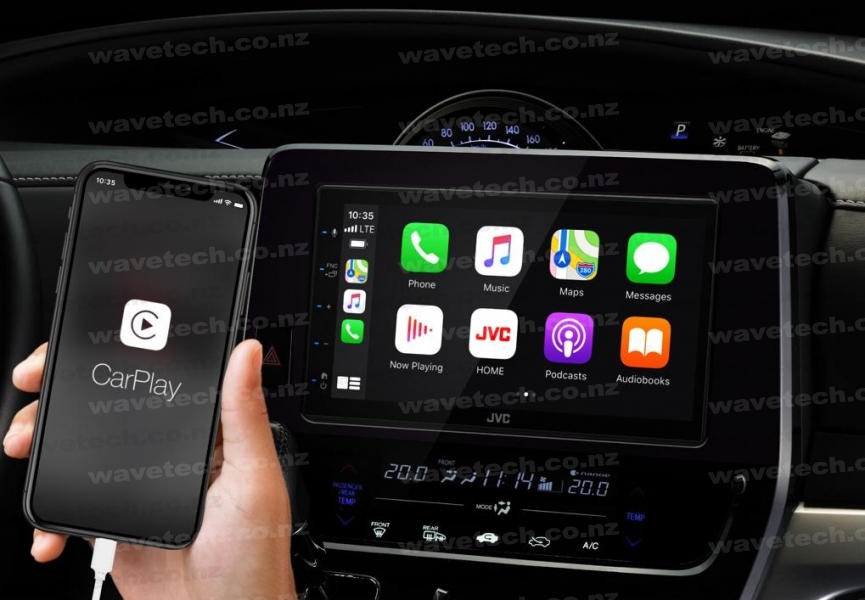

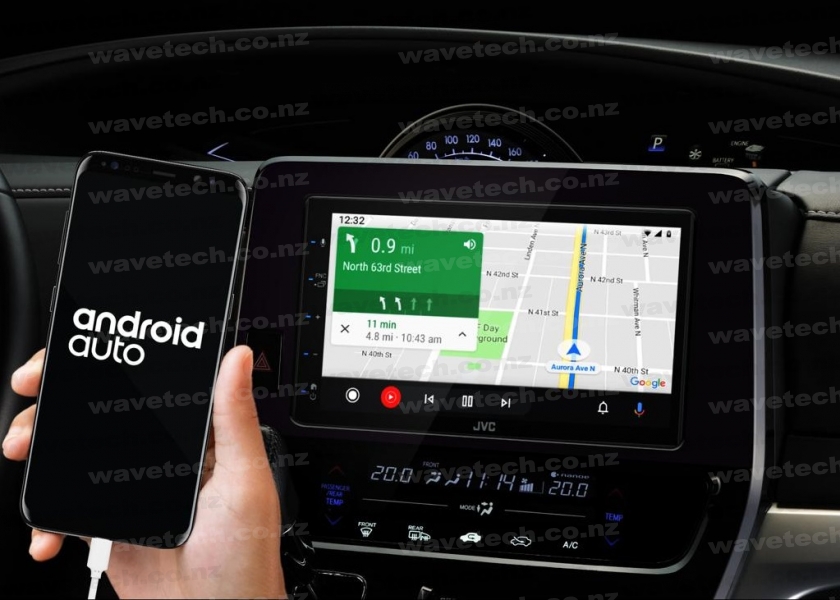

Simply plug-in via USB and have easy access to your smartphone applications over Apple CarPlay or Android Auto.
The KW-M560BT keeps you connected on the road and brings navigation apps like Apple Maps, Waze and Google Maps on to the 6.8 inch touch screen.
Stream your latest playlist, podcast or just listen to your favourite radio station.
Also, this AV Receiver fits in the smallest of spaces due to the short mechless body (Depth just 75mm)
Features
• Apple CarPlay (what's this?)*
• Android Auto (what's this?)*
• Mechless Short Body (75mm depth) Unit (No CD/DVD Player)

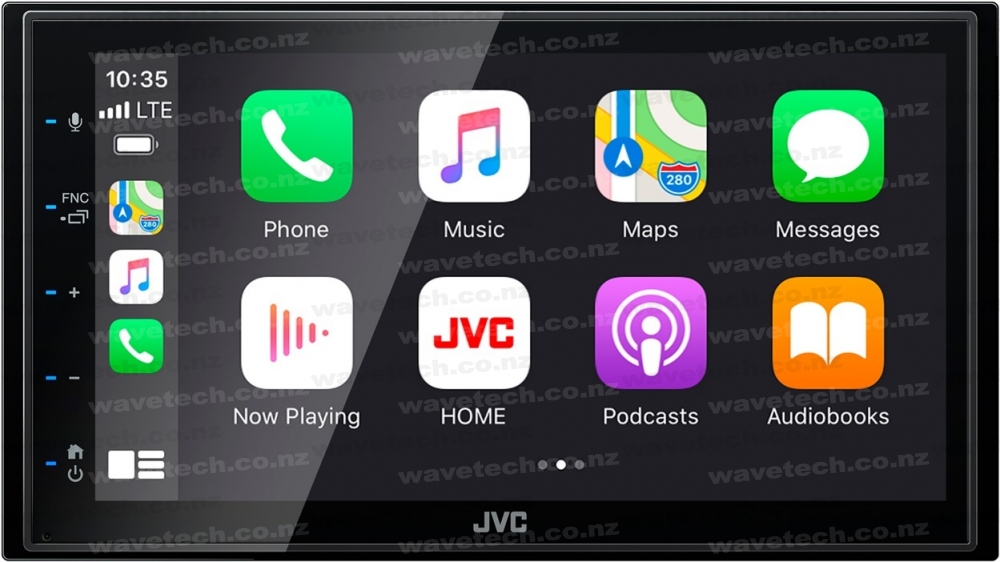

• 6.8" Capacitive Touch Screen Display
• Built-in Bluetooth Ver 4.1 (with Audio Streaming)
• Up to 7 Bluetooth devices can be registered

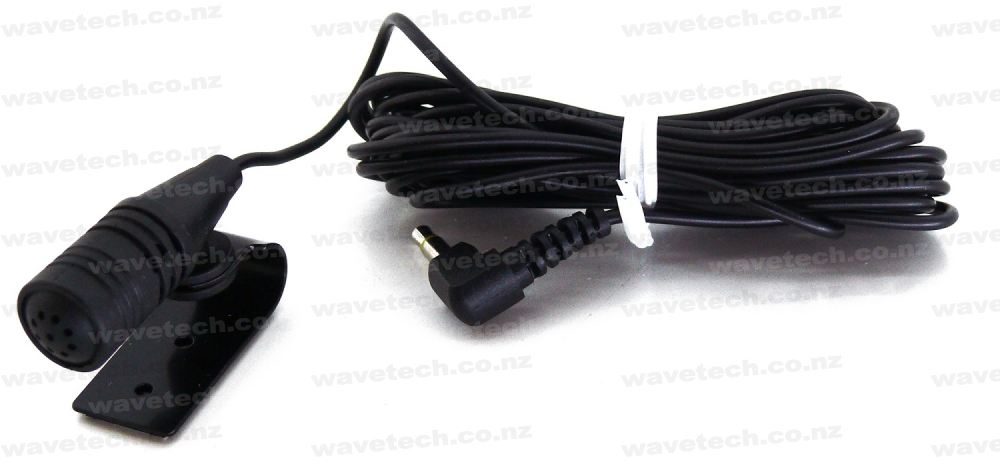

• External Wired Microphone Included (3.5mm)
• Rear 1.5A USB Input (iPhone/Android Compatible)
• Rear 3.5mm Audio/Video Input (can be used as AUX input)
• Audio Playback MP3/WMA/WAV/AAC/FLAC
• Video Playback H.264/WMV/MPEG 1,2,4/AVI/MKV Video Playback
• AM/FM Radio Tuner
• 13-Band Graphic EQ
• High-Resolution Audio Playback
• Customizable GUI
• Digital Time Alignment
• Subwoofer Level and Frequency Control
• RDS
• Trim Included

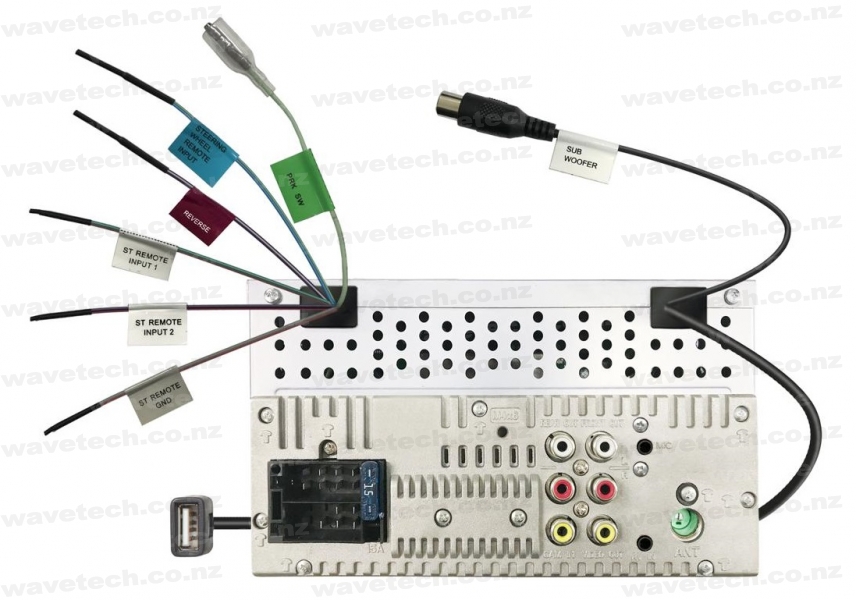

• RCA 2V Outputs (Front L/R + Rear L/R + Subwoofer )
• Rear Reverse Camera Input (RCA)
• Rear Video Output (RCA)
• Rear Wired SWC
- with Learning Function
- see HERE for some common vehicle SWC positions
Specifications
• Power Requirement: 12V DC Negative Ground (11V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,701 kHz (NZ frequency)
• Speaker Output: 50W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)
Size
• Double Din size featuring short body chassis
• Width: 178mm (Without Outer Trim)
• Height: 100mm

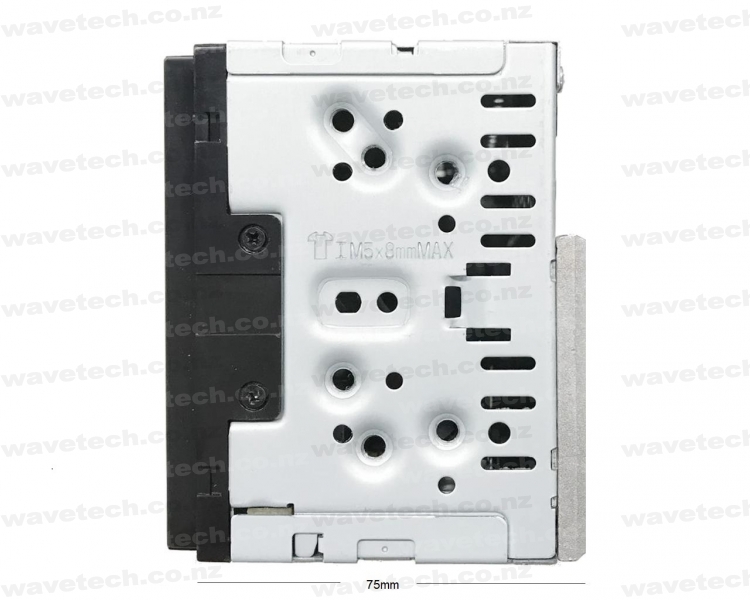

• Depth: 75mm (Short Body)
Note: This unit does not include a IR remote control or outer mounting cage
* Depends on phone. Not all phones supported.
|
