Infinity Kappa Five | 5 Channel Class D 1200W Amplifier
Infinity's new Kappa amplifiers have been engineered to deliver world-class reliable power delivery in an all new compact footprint. So, not only do Infinity's new Kappa amps sound great, but they take less space than any amplifier we have ever engineered and are smaller and easier to install than the amps available from the majority of our competitors. This has been accomplished using a high-power class-D amplifier circuit design which provides high output power, high overall efficiency and efficient transfer of heat from the transistors’ metal cases to the heat sink for the ultimate in space-saving amplifier design.
The Kappa Five features a 12dB per octave electronic crossover allowing you to optimize speaker performance based on type and location.

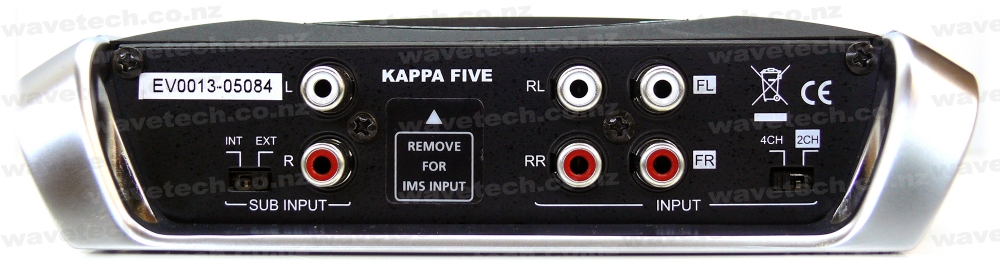

The Kappa Five features a pair of unique input selection switches eliminating the need for Y-adapters and simplify signal connections.
Differential Signal Inputs eliminate ground loops that cause engine noise and work with a variety of output configurations. Speaker-level, line-level single-ended and line-level balanced output signals from any source unit can be connected directly to the Kappa amplifiers’ RCA-type input connectors. High common-mode noise rejection eliminates alternator noise often present on the car’s chassis and electrical noise radiated into the signal cables. In a nut shell, common mode noise rejection works by amplifying the difference between the positive and negative leads of each signal input. Since noise is present and identical on both positive and negative, it’s cancelled by the circuit and all that is left is the music.
Smart protection circuitry guards against short circuits in the speaker output leads, under- and over-voltage due to a weak car battery or alternator or a failed voltage regulator in the car’s charging system, and protects your speakers in the event of an amplifier failure. Additionally, Kappa amps include thermal protection that never leaves you without your music. Conventional thermal protection circuits shut the amp down completely if it gets too hot. The thermal protection circuit in Kappa amps reduces the output level slightly, reducing the amount of heat generated until the amplifier reaches an optimum temperature. The amp cools itself but the music never stops.

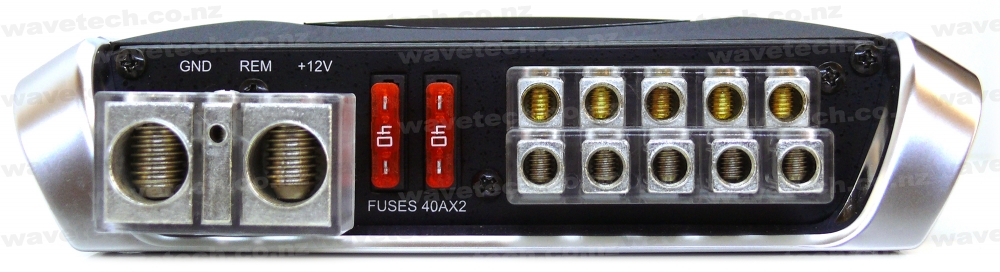

The Kappa Five accepts up to 4 AWG power and ground cables using the included 4-gauge terminal adapters.
Features
• 5 Channel
• Class D
• 5ch/4ch/3ch Configuration
• DirectFET Transistors For Increased Power Output
• 3 LED Power Indicators (1 Protect, 2 Power)
• Dynamic Bass Optimization (DBO)
• 3-Way Smart System Protection
• Heavy Duty Heatsink For Extreme Heat Dissipation
• RCA Level Inputs

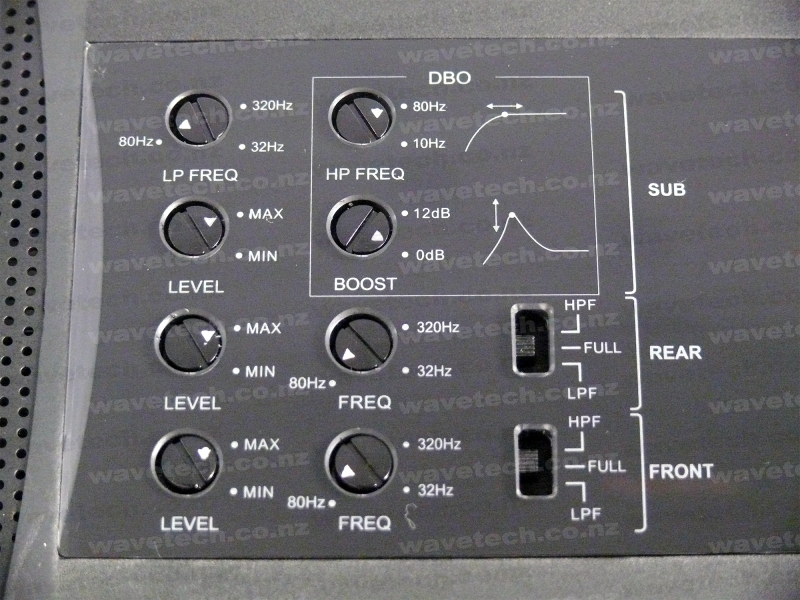

• Variable Front CH Filter (32Hz to 80kHz, 12 dB/octav)
• Variable Rear CH Filter (32Hz to 80kHz, 12 dB/octav)
• Variable Low-Pass Filter (32Hz to 320Hz, 12 dB/octav)
• Frequency response: 10-75,000 Hz
Specifications
• Total Max Power: 1200W
• RMS Power
5ch Configuration:
4 x 50W (4Ω) + 1 x 200W (4Ω)
4 x 75W (2Ω) + 1 x 300W (2Ω)
4ch Configuration:
4 x 50W (4Ω)
4 x 75W (2Ω)
3ch Configuration:
2 x 150W (4Ω) + 1 x 200W (4Ω)
2 x 150W (4Ω) + 1 x 300W (2Ω)
Dimensions
• Height: 179mm
• Width: 360mm
• Depth: 44mm
|
